I have been telling people I meet on the road to go to turbom3.com to check things out. To those people, hello. If you’d like to chat talk about cars or come stop by the shop and check things out feel free to email me.
John@precision-sport.com
Here are a whole lot of pictures to say sorry for not updating, some are from before the rest and just weren’t posted and the rest are after. Stay tuned for videos and more pics.
Boxes from HPF along with diff and tranny from the car and suspension for the car.
Rack of stuff including turbo, both manifolds, and coolant drain fitting.
Bottom end while installing new oil pump.
L19 head studs
Compressor side
Just some oil lines waiting to go on, You can see the two fuel pumps in the background, one which feeds from a second pickup.
Tckline DA suspension with rebound and compression valving adjustments.
Car got stoptech 6 pistonF/4 pistonR w/ 355mm rotors. With how quickly it gets into triple digits, it needs to stop well too.
Exhuast fitted together, were unsure about the 4 inch and sounding ricey, but it turned out to sound like a v8 so no complaints.
The titanium tipsw, again weren't sure how they would look but they go well with the estoril.
Exhaust being fitted, fits great for such tight clearnace.
Fuel rail with injectors, this thing uses a -10AN hose and fitting, just massive.
Fuel pressur regulator mock up.
Okada coils
You could stick your arm in there and chekc for shaft play if you wanted.
We updated harnesses where posible to be pin outs instead of splicing directly into wires.
Same
On dyno for some breaking in and power numbers. 630 Pump on a fresh motor O_O
We will now be making updates every day or every other day until the sort of unveiling of the car. It is insanely fast. Somehow the sound coming out of the little straight 6 3.2 liter sounds like a 7 liter v8.
Clutch and pressure plate on the engine
Vorsteiner CSL bumper and V710s that at the time were waiting to go on the car.
This is a drive shaft axle seal, I would say half of the CV jointed drive shaft BMWs we have our heads under this has magically disappeared. As in a dealer or indy shop had no idea it needed to be inspected each time the drive shaft came off and care taken when being put back on. The result is the packing grease gets flung out all over the underbody and the CV joint begins to lose lubrication. This car was caught in time.
Drive shaft gasket seal
Turbo having been installed on the car, you can also see the powerflex FCABs.
Turbo (and manifold) on the car
We apologize for the lack of updates. We have been incredibly busy here at PSI. The car is actually completed. Very soon we will begin posting DAILY updates on a staggered basis (as in not the rest of the build at once). These updates will include a lot of the “candy” of the build many have been waiting for.
The parts are really coming in at a steady pace now. Since this is the first “built motor” stage(2.5, 3, 4) to be installed outside of HPF, there are many precautions taken by them to ensure we’re receiving every single part necessary for this, since there are seemingly hundreds of them. In doing so, we’re taking our time on our end, while the parts are coming in piece meal as they’re organized and subsequently shipped from HPF. Within a few short days, we’ll have pretty much every single part we need to ramp up the install and have several big updates for the blog.
We’ve got the motor along with both subframes back in. The clutch and transmission are both in once again, and the driveshaft is in place ready to be bolted back in. Finally, we’re seeing this piece of Estoril Blue sheetmetal turn back into a normal car. . .but that won’t last for long once the turbo parts start going on it! Here’s a few obligatory pictures of some recent updates:
Motor back in, view from top; awaiting turbo goodies now
Freshly cleaned and treated fender liner reinstalled
TCKline D/A shock installed in rear
Oil pump with pretty HPF bracket, transmission back on the motor.
Differential installed. Driveshaft visable along with Powerflex race subframe bushings and reinforcement plates welded in.
HPF head flange installed along with air pump block off plate - now waiting on turbo manifold to be bolted on
Just a picture showing how clean the area surrounding the fuel filter came out
Stay tuned, another update coming shortly!
The car is getting an Alcantara headliner/pillar/deck treatment. The center console and E-brake has also been wrapped in Alcantara and it turned out great! The stitching you see matches the ///M colors perfectly and will open up over time to look factory. Wont ever have to worry about scrtching up the poor factory coating on a hot day! PSI Offers this for shipping but it cost a couple hundred dollars as it is difficult and uses real Alcantara.
Alcantara center console
Other side.
The time has arrived for the car to start being reassembled. We are happy to start putting parts back in the car and freeing up some of the clutter.
The engine has been reassembled and put in the car and secured in place to prevent rocking until the transmission is in.
Rear subframe is back on the car, RTABs in, rear shocks in.
Parts have begun to arrive from HPF and there is lots of work to be done.
Putting the parts back on new engine.
Throttles being cleaned up a little bit
Most of the parts back on the engine.
Anodized intercooler.
Old engine ready to go back.
Intercooler on the car
Protecting those fins
New flywheel torqued to engine
Powerflex FCAB
Today the engine arrived in all of its built glory.
Built S54
Ancillary parts need to be removed from the old engine and put on the new.
All the parts on engine
Some of the parts removed
More parts off
Most parts off.
All of these parts will be thoroughly cleaned before being reassembled with all new gaskets washers and O rings.
Some of the ancillaries
More ancillaries
Teasing the car.
We’re going to waste no time in jumping right into the teardown, cleanup & reinforcement of the 2002 Individual M3. This car was not in poor shape from the get go, but in order for it to be up to our meticulous standards upon it being considered “finished,” there was much work to do to completely revitalize the vehicle top to bottom; inside-out. We jumped right in and pulled the motor, transmission, both subframes and pretty much anything that we even had the slightest feeling may have wanted to leak. Here’s a couple pictures for now of the journey thus far, enjoy!

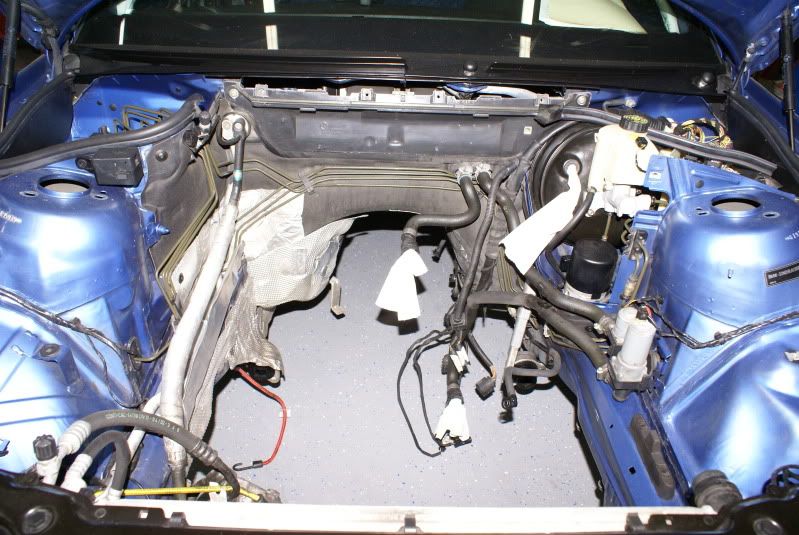

motor out, waiting on new one built to HPF specification:

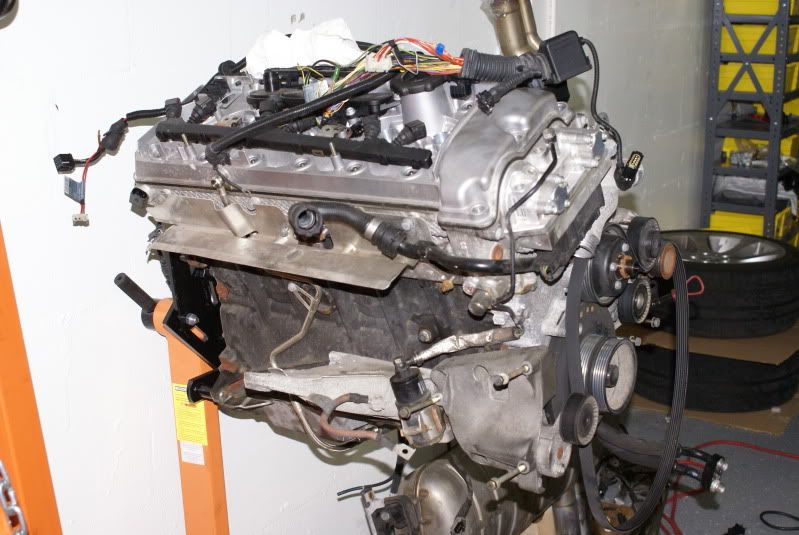

S54 sitting on an engine stand awaiting it’s fate:

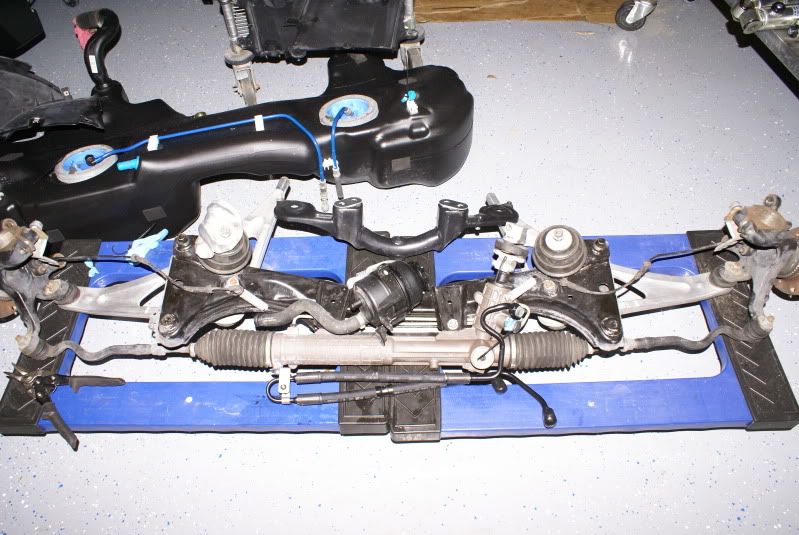

Front subframe and gas tank thoroughly cleaned and awaiting reinstallation:

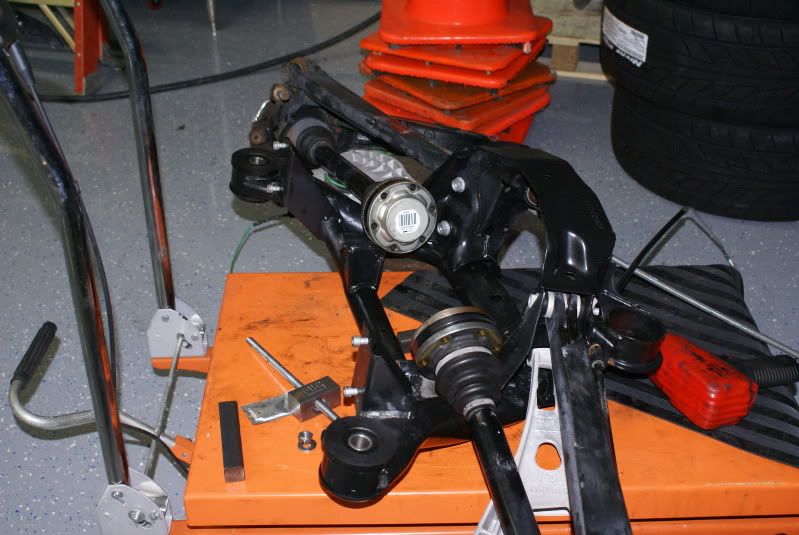

Rear subframe removed for chassis reinforcement - subframe cleaned with Powerflex polyurethane race bushings pressed in:
HPF rear subframe reinforcement kit welded into place and finished with corrosion-inhibiting coating:
Tons and tons of bolts, nuts and miscellaneous parts in countless labeled bins neatly stored on racks around the shop:

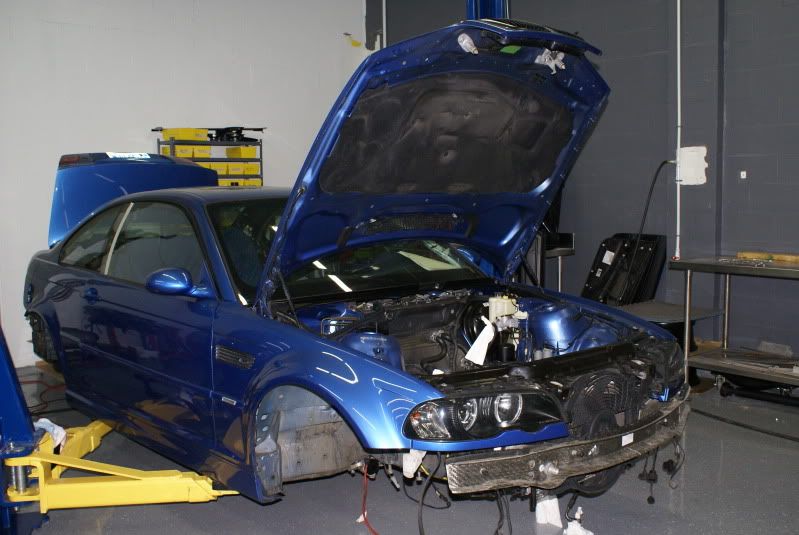

The car as it sits now. . .it almost resembles something you’d see at a chop shop; there is very little on the car at this point!
Check back for more updates soon, as the motor and kit should be arriving any day now, and the entire interior is going to be refreshed as well!
The Shop:
Precision Sport Industries in Winter Park, FL - www.precision-sport.com
Speicializing in FI BMWs…..
The Car:
SMG II
65,000 Miles (soon to be like new mechanically)
The Kit:
HPF Stage 3 Kit
Other major modifications:
Stoptech 6 piston BBK
TCkline Dual-Adjustable coilovers
CSL front bumper/rear trunk/rear diffuser
Alcantara headliner/rear deck/pillars
CF leather coverings on trim pieces
New bushings for rear trailing arms, front control arms, and the subframe as well as new motor mounts and axle/driveshaft seals. Also preventitive items such as the driveshaft flex disc (guibo)
New front windshield and cowl, replace all worn/cracked/rotted seals and other worn parts
Clean all parts of the car that have not been up kept by previous owners (IE power steering leak and fuel weeping)
Replace all worn components as found.
